New 2025 Entegra Coach Odyssey SE 22AF

Motor Home Class C

Stock #11242067

Gambrills

1 of 12

+12

Specifications

Sleeps	6	Slides	1
Length	24 ft 9 in	Ext Width	8 ft 4 in
Ext Height	11 ft 6 in	Int Height	7 ft
Interior Color	ASHBROOK	Hitch Weight	5000 lbs
GVWR	12500 lbs	Fresh Water Capacity	43.5 gals
Grey Water Capacity	40 gals	Black Water Capacity	32 gals
Tire Size	LT225/75R16	Furnace BTU	30000 btu
Fuel Type	Gas	Engine	7.3L V8
Chassis	Ford E-350	Horsepower	325 hp
Fuel Capacity	55 gals	Wheelbase	158 in
Number Of Bunks	1	Available Beds	RV Queen
Torque	450 ft-lb	Refrigerator Type	12V
Refrigerator Size	10 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Shower Size	24" x 36"
Axle Weight Front	5000 lbs	Axle Weight Rear	8500 lbs
LP Tank Capacity	12.2 gals	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
TV Info	LR LED HD Smart TV	Awning Info	13' Electric
Gross Combined Weight	18500 lbs	Shower Type	Standard
Electrical Service	30 amp	VIN	1FDWE3FN3SDD32067

Description

Entegra Coach Odyssey SE Class C gas motorhome 22AF Ford highlights:

RV Queen Bed
10 Cu. Ft. 12V Refrigerator
Overhead Cabinets
Tire Pressure Monitoring System
Hill Start Assist

This coach will feel a little more like home with its spacious interior thanks to the U-shaped dinette slide! You can dine here, play games, and even let guests sleep here. There is additional sleeping space in the cab-over bunk and the rear corner 60" x 74" queen bed. The rear corner bath includes the 24" x 32" shower and foot flush toilet, and the stainless steel bath sink is just outside this room so two people can freshen up at once. You will find everything you need to cook meals each day, including a two burner cooktop with a flush cover, a convection microwave, plus a 10 cu. ft. 12V refrigerator to store perishables.

The Odyssey SE Class C gas motorhome by Entegra Coach is constructed with TuffShell vacuum-bond laminated sidewalls, a one-piece, seamless fiberglass front cap, and bead-foam insulation for added durability and strength. Whether you choose a model with a Ford E-350 chassis or Chevy 4500 chassis, you will get a durable coach made to last. The driver will also love the power steering, tilt steering wheel, and auxiliary start switch. The 7' interior ceiling height will provide plenty of space to stretch out and the high-intensity, recessed LED lights will make your space feel more like home. All of your power needs will be met with a 4,000-watt generator and 12V house battery, plus there is a 13.5K BTU A/C and 30K BTU furnace to keep you comfortable all year long. There are a couple additions you might want to add to further customize your Odyssey SE, like the optional automatic hydraulic leveling jacks and the optional 200W solar panel for some off-grid camping!

Options:

PRIORITY RV NETWORK
RV WARRANTY FOREVER

Call 410-987-4793

Features

Standard Features (2025)

Customer value Package

One-piece, seamless, fiberglass front cap
Heated holding tanks (12V pads)
Electric patio awning
Black holding tank sprayer
Backup camera
LED HD Smart TV

Chassis

Chassis Equipment for 22A, 22C, 22E, 22T
- Chevy® 4500 chassis
- GVWR- 14,200 lb.
- GCWR- 20,000 lb.
- 6.6L Vortec V8 401 HP engine with 464 ft.-lb. torque
- Hydra-matic 6-speed automatic transmission with overdrive
- 150-amp alternator
- 57 gal. fuel tank
- StabiliTrak stability control system
- OnStar with 4G LTE
Chassis Equipment for 22AF, 22CF, 22EF, 22TF
- Ford® E-350 chassis
- GVWR- 12,500 lb.
- GCWR- 18,500 lb.
- 7.3L V-8 325 HP engine with 450 ft.-lb. torque
- 6-speed TorqShift® series transmission with overdrive
- 210-amp alternator
- 55 gal. fuel tank
- Tire pressure monitoring system (TPMS)
- Catalytic converter theft deterrent
- Electronic stability control
- Traction control
Chassis Equipment on All Floorplans
- 5,000 lb. hitch with 500 lb. tongue capacity and 7-pin plug
- E-rated highway tires- LT225/75R16
- 12V chassis battery
- Power anti-lock brakes with power steering
- Remote-controlled, side-view mirrors

Exterior

TuffShell™ vacuum-bond laminated roof, floor and sidewalls
Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
Tufflex™ PVC laminated roof
Aluminum running boards
Fiberglass exterior walls with vinyl graphics
Entrance door with industry’s largest travel-view window
Electric-powered entrance step with integrated house battery compartment
Third brake light
4 in. bumper tube sewer hose storage
Cable TV hookup with RG-6 coax
Digital antenna with signal booster
4,000W generator
Solar prep
12V house battery
Transfer switch with reverse polarity protection
30-amp electrical service
12.2 gal. propane tank (41 lb.)
LP quick-connect hookup
Exterior utility center
Winterization drain system
Outside shower
12V demand water pump
Water filtration system

Cockpit

Remote-controlled, side-view mirrors
Hill start assist
Tilt steering wheel
Cruise control
Electronic stability control
Traction control
Power windows and door locks
Auxiliary start switch
Driver and passenger airbags

Interior

Overhead bunk with 750 lb. capacity
84 in. ceiling height
High-intensity, recessed LED ceiling lights
Hardwood cabinet doors
Ball-bearing drawer guides
Entegra-exclusive, easy-operation legless dinette table (22C, 22CF)
2-point lap safety belts in all designated seating locations
42 in. x 78 in. U-shaped dinette (22A, 22AF, 22E, 22EF)
48 in. dinette bench with removable table (22T, 22TF)
Interior entrance door grab handle
Interior command center
Pleated blackout shades
13,500 BTU ducted A/C
30,000 BTU auto-ignition furnace
6 gal. gas/electric DSI auto-ignition water heater
Smoke alarm
Carbon monoxide detector
Fire extinguisher
10 cu. ft. 12V refrigerator
2-burner cooktop with flush cover
Convection microwave oven
Stainless steel kitchen sink
Decorative kitchen backsplash
Queen-size bed with bedspread (22A, 22AF, 22C, 22CF, 22E, 22EF)
(2) twin-size beds with filler cushion convert to king-size bed (22T, 22TF)
Large wardrobes (select models)
Shower with decorative ABS surround and skylight
Stainless steel bathroom sink
Toilet with foot flush

Options

Automatic hydraulic leveling jacks
200W solar panel with dual controller and second house battery

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Everyone at Leo's was super. Jimmy in service was great - Art in sales is a great guy. Sarah is lovely and super helpful.

WINGFIELD
Everything was very professional. Jim did a great job explaining every system & was anxious to have us be completely satisfied. Bob Wilson was a pleasure to purchase from. The Redwood unit was delivered in excellent condition.

A very great experience from seller to walk thru. Very friendly and always ... More »

D
Absolutely positive experience all around. Felt like we were dealing with family! Keep doing what your doing – It Works! and we love our trailer.

R

We are here to help, call us at
410-987-4793 or Contact Us

We are here to help!

410-987-4793
Contact Us
Check Availability

Leo’s Vacation Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @410-987-4793 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2025 Entegra Coach Odyssey SE 22AF

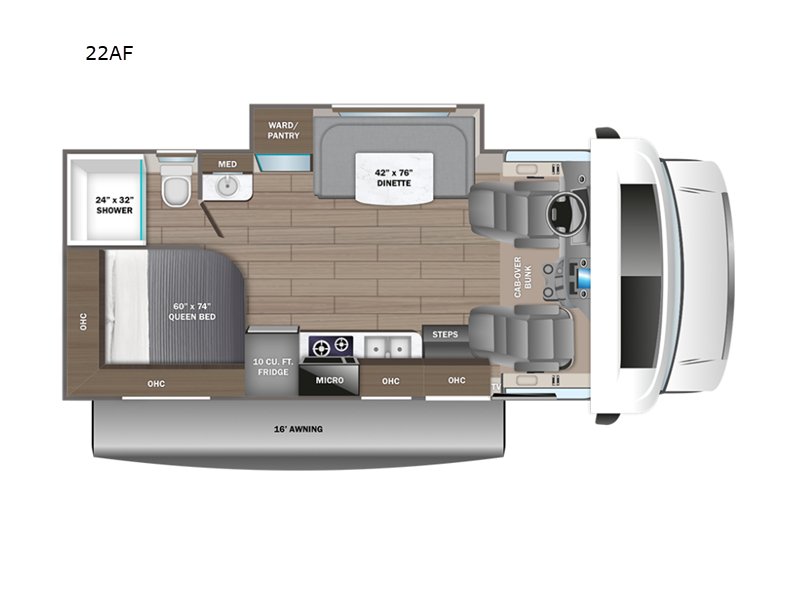

22AF Floorplan
